Before the First Impression: How OD, Dot Area and LUT Calibration Determine Digital Color Accuracy

Ronen Dolev | Industrial Color Engineering Series | October 2026

The color problem that begins before the job

A label converter receives two approved versions of the same package: one on a glossy white stock and another on a matte paper label. Both will run on a digital liquid electrophotographic (LEP) press with the same four process inks. A test file looks correct on the glossy stock. Production changes to matte, uses the previous job settings, and discovers a flatter brand blue and a heavier-looking gray ramp. The operator is tempted to edit the ICC profile, adjust CMYK percentages, or shift the density in the job ticket.

But the first question should be simpler: Did the press reach the appropriate, verified calibration condition for the material being used? An ICC transformation cannot stabilize a press whose full-tone color, halftone response, and transfer conditions are not under control. The incident is an illustrative production scenario, not a reported measured trial. Its value is the distinction between a color problem caused by an incorrect recipe and a problem caused by the condition in which that recipe was printed.

Digital color preparation is not a single button or a single measurement. It is an ordered process: establish mechanical and imaging stability; identify the substrate and calibration aim; stabilize solid ink optical density (OD); measure and correct dot-area response; validate the resulting calibration LUT; and only then evaluate characterization, output profiles, and job-specific appearance. The sequence matters because a downstream correction can conceal an upstream defect rather than solve it.

First establish a press condition that can be calibrated.

A calibration is meaningful only when the underlying imaging and transfer mechanism is repeatable. In LEP, colorant particles carried in liquid develop an electrostatic image and are transferred through an intermediate blanket to the substrate. Transfer temperature, surface condition, consumables, ink state, imaging stability, and substrate receptivity are therefore process conditions, not external nuisances.

Before a color-critical run, check the normal maintenance baseline, cleanliness and health of transfer surfaces, the correct media setting, and the measurement instrument. Inspect a representative quality target for banding, missing dots, contamination, uneven solid areas, and any recurring image defect. If the printed test is physically inconsistent, the tone curve it generates will reflect that inconsistency. It will not repair the mechanical cause.

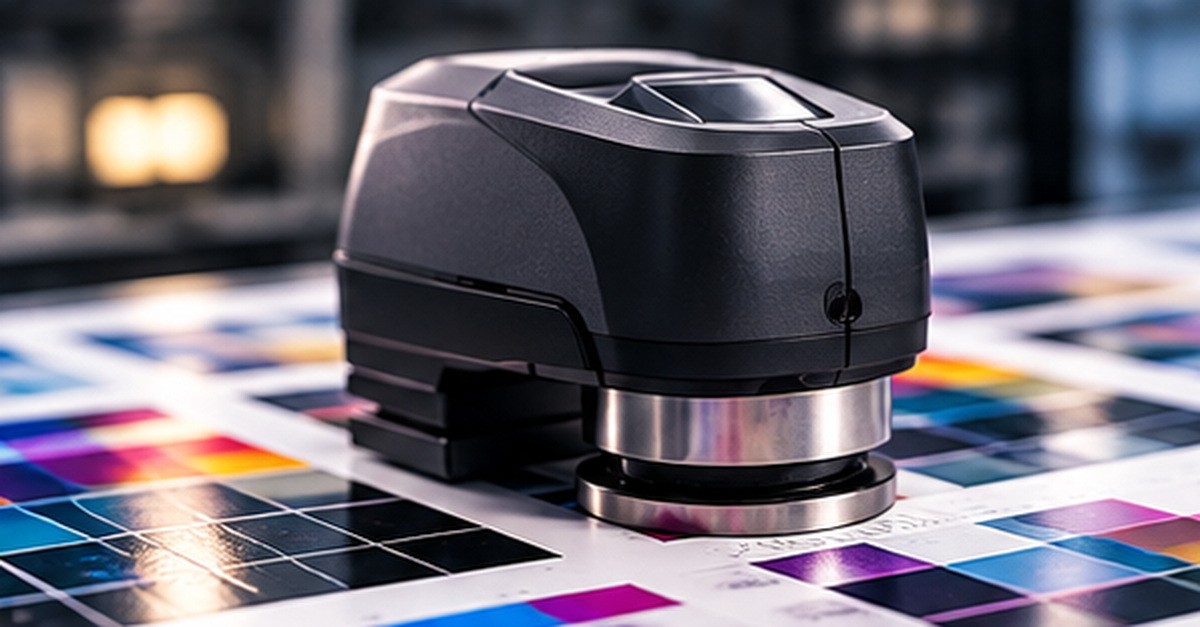

An embedded densitometer or spectrophotometer must itself be in a valid calibration state. Cross-checking representative solid patches with a qualified external instrument is a useful verification method when a discrepancy is suspected. Measurement status, backing, instrument settings, and the stock used for reference must be documented; density numbers measured in incompatible conditions should not be treated as equivalent.

Step one: define the substrate and the full-tone OD aim

Optical density (OD) is derived from the amount of light reflected by a printed color patch. Under controlled measurement conditions, OD indicates the ink layer's optical response. However, the measurement is also influenced by the substrate's optical characteristics, particularly its surface finish, reflectance, and interaction with the printed ink.

The same ink, printed under comparable conditions, may produce different optical-density readings on glossy, semi-matte, and matte substrates. Consequently, substrate classification should be considered an essential part of the calibration process rather than merely a description of visual appearance.

Determining substrate gloss before calibration

A calibrated gloss meter can objectively evaluate a substrate's surface gloss. This instrument measures specular reflection at a defined measurement angle and expresses the result in Gloss Units (GU). The measurement geometry must be selected according to the substrate type.

For paper and paperboard, gloss is commonly measured at 75°, consistent with ISO 8254-1 and TAPPI/ANSI T 480. For synthetic substrates, including plastic films, ASTM D2457 commonly specifies a 60 ° measurement. ISO 2813 additionally defines 60° gloss measurement for suitable coated surfaces.

For practical substrate classification within the printing calibration workflow, the following operating ranges may be applied:

These values represent proposed operational classification limits, not universal thresholds prescribed by ISO, TAPPI, or ASTM standards. Their applicability should be verified against the printing system, substrate portfolio, and established color-calibration procedure.

Although this document uses the same numerical classification ranges for both material groups, measurements obtained at 75° and 60° are not directly interchangeable. Gloss readings depend on measurement geometry, and a numerical result obtained at one angle cannot automatically be compared with a result obtained at another.

Measurements should be performed on a clean, representative, unprinted area of the substrate, preferably at several positions to verify surface consistency. For transparent or translucent films, the measurement setup, support, and backing conditions must be controlled and documented to ensure repeatable results. Film flatness and surface condition should also be considered.

Connecting surface gloss to the optical-density target

Once the substrate is identified and its surface finish classified, the appropriate full-tone optical-density target can be selected.

A production system may provide predefined solid-density targets for glossy, semi-matte, and matte substrates or a qualified procedure for determining the correct target for a new material. These targets should reflect the substrate's actual printing characteristics rather than relying exclusively on the manufacturer's commercial description.

For example, a material marketed as semi-matte may show a surface-gloss measurement that corresponds to a different operational classification. In such cases, consider the measured surface properties alongside the substrate's actual printed color response when selecting the calibration condition.

Certain synthetic films, metallic substrates, and specialized constructions may require a defined measurement backing, an opaque white reference layer, or a dedicated substrate characterization procedure before reliable optical-density measurements can be established.

The first active calibration stage brings solid cyan, magenta, yellow, and black toward their intended optical-density aims. In systems equipped with additional process-color channels, these channels must also be maintained in an appropriately controlled state, although their calibration methods depend on the press architecture and software implementation.

The press may adjust imaging, development, or other relevant process controls to converge toward the selected density targets. Completing the automated calibration wizard should not, by itself, be considered sufficient evidence of success. The operator should verify the measured solid patches, assess print uniformity, and confirm that the results are consistent with the qualified printing condition.

Understanding the limitation of solid-density calibration

A solid-color patch represents the maximum-tone optical response under defined measurement conditions. Achieving the desired solid density does not establish that highlights, midtones, neutral gray balance, or overprints will reproduce accurately.

Two substrates may produce comparable solid-density readings while exhibiting different tonal behavior, color appearance, and color-gamut characteristics.

Therefore, accurate substrate identification, objective gloss measurement, and correct full-tone OD target selection establish the foundation for calibration, but they do not replace the subsequent stages of tone-value correction, gray-balance control, and color characterization.

A successful calibration begins with understanding the substrate, not simply adjusting the press until a target density is reached.

Measurement standards referenced

1. ISO 8254-1:2009 — Paper and board: Measurement of specular gloss at 75°, converging-beam method.
2. TAPPI/ANSI T 480 om-25 — Specular gloss of paper and paperboard at 75°.
3. ASTM D2457-21 — Specular gloss of plastic films and solid plastics, including 60° measurement geometry.
4. ISO 2813:2014 — Determination of gloss value for suitable coatings at 20°, 60°, and 85°.

Step two: calibrate dot area, not just maximum density

Once the solid-color condition is established, the press examines intermediate tone patches. Dot Area (DA), often calculated from density readings in the relevant process-control method, expresses an effective printed tone value; it is not simply a microscopic measurement of each dot's geometric size. Optical scattering, print structure, substrate properties, and physical reproduction all contribute to the measured response.

A nominal input such as 50 percent (Linearity) is a command to the imaging system. The printed result may yield a different effective tone. If the difference is repeatable, it can be corrected by a calibrated transfer curve. If the difference changes unpredictably across the sheet or across successive impressions, the process must first be stabilized. A curve can compensate for a known response; it cannot make inconsistent dots repeatable.

The full tonal progression matters. A calibration that looks excellent at the solid end may still lose delicate highlights or close small reverse openings in the shadows. Test the relevant range and inspect both measured curves and actual image elements. The selected screening method must remain fixed: changing AM ruling, angle architecture, FM distribution, or hybrid screening may alter effective tone behavior even when the same inks and media are used.

Step three: build, validate and approve the calibration LUT

A Look-Up Table (LUT) establishes the relationship between digital input values and their corrected output values. In digital printing, LUTs are used to control tonal reproduction and, when required, simulate the Tone Value Increase (TVI), traditionally known as dot gain, associated with conventional printing.

Following press calibration and stabilization of the solid optical-density targets, the appropriate tonal reproduction must be established. The correct LUT configuration depends on whether the printing workflow uses a standardized input color profile.

Printing without a standardized input profile

When no standardized input color profile or equivalent color-management transformation is applied, an appropriate dot gain LUT should be selected to produce the required tonal response.

For example, a target curve producing approximately 14% Tone Value Increase at the 50% nominal tone would result in an effective printed tone value of approximately 64%.

The selected curve must suit the intended reproduction condition and be verified through measurements across the tonal scale.

Printing with a standardized input profile

When a standardized input color profile is selected, and the color-management transformation already accounts for the required tonal characteristics, set the additional Job LUT to Linear.

The standardized color-management workflow already incorporates the intended tone reproduction into its transformation. Applying another dot gain curve at the Job LUT level may result in double compensation.

This can produce excessive midtone reproduction, unwanted tonal shifts, gray-balance deviations, and reduced color accuracy.

A Linear Job LUT does not mean that the printing system operates without calibration. The underlying press calibration and the color-management transformation remain active. Linear simply indicates that no additional tonal adjustment is introduced at the Job LUT stage.

Establishing the correct LUT workflow

The fundamental principle is to apply the required tonal compensation only once.

When no standardized input transformation is active, an appropriate dot gain LUT must be selected and verified.

When a standardized input profile already provides the required tonal transformation, the Job LUT should remain Linear.

In either workflow, verification should include solid optical density, representative tonal values, neutral gray balance, and consistency with the intended printing condition.

Correct LUT selection ensures press calibration, tonal compensation, and color management work as a coordinated system without unnecessary or duplicated corrections.

What changes in offset and flexography?

In conventional sheetfed offset, the press operator can influence full-tone OD by changing ink supply and, consequently, deposited film weight during production. Other conditions, including dampening balance and transfer state, must remain controlled. The ability to move solid density with ink keys does not remove the need for calibration, TVI control, and a characterized printing condition; it changes the available intervention.

Flexography places different limits on operator control. Anilox volume and geometry, blade condition, ink rheology, plate behavior, and transfer efficiency influence the printed layer. Changing an anilox is not equivalent to a small, continuous adjustment of an offset ink key. The press must be fingerprinted under the qualified film and ink-transfer settings. LEP differs from both because it establishes a stable color baseline primarily through its calibrated digital and electrophotographic operating point, rather than routine mechanical adjustment of local ink-film supply.

This statement is specific to the LEP approach discussed here. Inkjet and dry-toner devices use different actuators and calibrations. Calling every digital system a single technology would erase useful engineering distinctions.

Where media fingerprinting and ICC profiling belong

Organizations use the word fingerprint differently. A media fingerprint may be a measured characterization record used by a supported press to return to a known substrate response, sometimes as a foundation for multidimensional calibration. It is not automatically the same artifact as a DFE output ICC profile. In documented LEP workflows supporting media fingerprinting, full calibration LUT pages are completed before the fingerprint patches are printed and measured.

Once the device/media state is stable, an appropriate characterization chart can be measured and an output profile created or confirmed. That profile describes a specific, declared relationship between device values and measured color. If calibration aims, substrate class, screening, or media construction change, verify the profile before reuse. A profile should describe a stable press, not replace one.

Practical release check before printing

A reliable pre-production sign-off can be summarized in plain language. The substrate identity and class match the loaded stock. Imaging and transfer inspections show no unresolved defects. The embedded instrument's calibration is valid. Solid OD calibration has converged and has been verified where required. We corrected and verified effective dot-area behavior. The intended calibration and job LUT states are known. The screening, ink set, white-underprint strategy if present, and DFE color strategy match the approved condition. A print made from the actual job is inspected under controlled light against the correct reference.

If a color-critical job fails after that sequence, diagnose the remaining problem at the correct level. A solid-OD failure directs attention to media and press state; a tonal failure to tone calibration or screening; an otherwise stable but systematically wrong color to characterization, conversion, gamut, or brand-color recipe. Deliberately separating these causes prevents unnecessary recalibration and keeps the production process auditable.

Engineering conclusion

The first impression should not be the first time a production team discovers its color state. The digital press must reach its intended full-tone OD, then its controlled dot-area response, and finally an approved calibration LUT before you trust characterization or job-level color matching. Gloss, semi-matte, and matte are not interchangeable merely because the same inks are installed.

In LEP, repeatable color starts with defined, verified press conditions. ICC conversion is the last part of a longer chain of evidence, not the first tool to reach for when a color appears wrong. A calibrated baseline makes every subsequent color decision more meaningful; without it, even an excellent profile is only a precise description of an unstable condition.

Sources and technical references

International Color Consortium. Information on ICC profiles, characterization and print-production workflows.

Fogra. ProcessStandard Digital (PSD), 2025 handbook and process-control resources.

ISO 13655:2017. Graphic technology — Spectral measurement and colorimetric computation for graphic arts images.

LEP color-management how-to guide, technical reference CA394-03841 (2015), supplied for analysis; detailed settings and aims are model- and revision-dependent.
